Coming from Twilight Render

Twilight Render was discontinued at the start of 2024: no new licenses and no more updates. If you rendered with Twilight, this guide shows where everything you know from it lives in Rayscaper: the material templates, the light tool, the environment, the render presets and the post-processing.

Rayscaper works the way Twilight users are used to: it’s a SketchUp extension, it starts from the colors and textures of your SketchUp materials, it places lights with a SketchUp tool and it reads SketchUp’s own sun. The big difference is that Rayscaper renders interactively. There is no separate exploration renderer and final renderer: the render window updates while you model, orbit and change settings, and gets cleaner the longer you leave it alone.

The workflow at a glance

In Twilight you…	In Rayscaper you…
opened the Material Editor, picked a surface with the eyedropper and chose a template	turn on Material Pick (Ctrl+M), click a surface in the render and choose a material type
placed lights with the Light Tool in three clicks and chose the type in the Light Editor	pick a light tool per type on the Rayscaper toolbar and place it in two or three clicks
chose a sky or background in the Environment Editor	choose a Color, HDRI or Sky environment
chose a render preset and a render size in the Render Editor, then rendered	click Start Render; the render runs while you work, see Rendering
finished the image with the post-processing tools	use the Post Processing section, live on the render

Your first render

Install Rayscaper and open your model.
Click Start Render on the Rayscaper toolbar. The Rayscaper window opens and starts rendering right away, from the current SketchUp view. Every SketchUp material gets a Rayscaper material with the same color and texture.
Set up the light outside. A new model starts with Rayscaper’s sky, whose sun follows SketchUp’s Shadows panel, as in Twilight (Extensions > Rayscaper > Use SketchUp Sun for Sky). For other light, change the Environment or drag an HDRI from the Asset Manager onto the render.
Add lights with the light tools on the Rayscaper toolbar, see Lights.
Fine-tune your materials. Turn on Material Pick on the toolbar (Ctrl+M), click a surface in the render and pick a material type for it. The table below tells you which type replaces which Twilight template.
Save the render with File > Save… (Ctrl+S). Denoise on the toolbar is on for a new model and removes the last grain.

Rayscaper saves its settings in the model, so the next time you open it, it renders the same way. For a guided first render, watch the Quick Start video.

Materials

In Twilight you opened the Material Editor, picked a surface with the eyedropper and chose a template. In Rayscaper you turn on Material Pick in the render window and click a surface, and its material opens in the Materials section of the Scene Editor. Instead of choosing from about seventy templates, you choose one of four material types and set its few settings, such as the finish. Every new material starts as Standard, which already looks good on most surfaces.

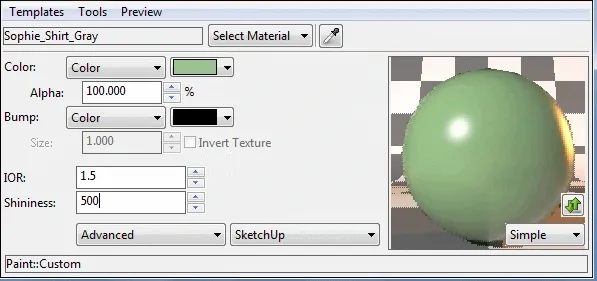

Twilight's Material Editor with the Paint template applied — Twilight Render

Rayscaper's Materials section with a Standard material — Rayscaper

Twilight’s Material Editor with a paint template, and the same job in Rayscaper: a material type with a few settings.

Twilight template	Rayscaper material	Notes
Generic	Standard	The default for every material.
Paint: Matte	Standard, Matte finish
Paint: Gloss, Satin	Standard, Glossy or Satin finish
Plastic: Shiny, Matte	Standard, Glossy or Satin finish
Wood: Gloss, Satin	Standard, Lacquered finish	A wood texture under a clear varnish.
Wood: Matte	Standard, Matte finish
Ceramic: Tile Gloss	Standard, Glossy or Lacquered finish
Ceramic: Tile Matte, Stone: Rough	Standard, Matte finish
Stone: Polished, Perfect Reflection: Polished Concrete	Standard, Glossy finish	A low roughness gives the polished look.
Perfect Reflection: Mirror	Standard, Mirror finish
Metal, Brushed Metal	Metal	Pick the metal (aluminium, chrome, copper, gold, …) and raise Roughness and Anisotropy (under Advanced) for brushed metal.
Car Paint	Standard, Lacquered finish
Glass: Realistic, Architectural	Glass	Turn on Thin for window panes modeled as a single face.
Water	Water	For pools and ponds. Water in a glass is Glass with an IOR of 1.33.
Light Emitter	Any type, with Emission	Fake Emission is Twilight’s non-emitting emitter: it glows but doesn’t light the scene.
Translucent: Fabric	Standard, Fabric finish	The finish adds the soft edge glow of cloth.
Translucent: Leaf	Standard	Cut the leaf out with Opacity, see Creating Foliage.

A few things work differently:

Bump maps. Rayscaper uses normal maps instead of bump maps for surface detail, see Normal Map. Most texture sites offer a normal map next to the color texture. Bump (height) maps are planned.
Ready-made materials. Instead of templates, the Asset Manager has a library of finished materials from Poly Haven. Drag one onto a surface in the render. Materials you build yourself can be saved to the same library and reused in other models, like Twilight’s material libraries.
Changes in SketchUp. Once Rayscaper has created a material, later changes to the SketchUp material don’t overwrite your Rayscaper settings. Click Reload to take them over, see Working with SketchUp Materials.
Not available yet: subsurface scattering (Twilight’s skin, marble and wax), the toon texture and the bevel modifier of Twilight’s Deep Material Editor.

Lights

Twilight placed lights with one Light Tool in three clicks (anchor, position, target) and set the type afterwards. Rayscaper has a tool per light type on its toolbar, but they work the same way: click a reference point, then the light’s position, then (for all but the point light) where it points. SketchUp’s inferences, arrow-key axis locks and the Measurements box all work. See How Light Placement Works.

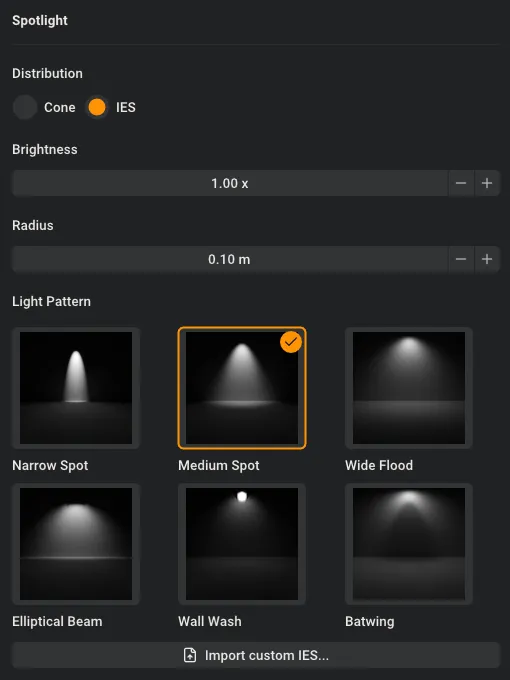

Rayscaper's Spotlight settings with the IES patterns — Rayscaper

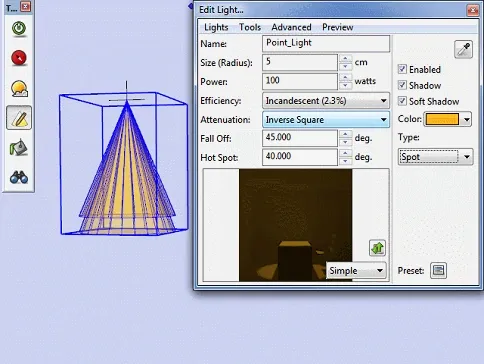

Twilight’s Light Editor with a spot light, and Rayscaper’s Spotlight settings, here with a built-in IES pattern.

Twilight light	Rayscaper light
Omni	Point Light
Spot	Spotlight, with Distribution set to Cone
IES	Spotlight, with Distribution set to IES. Import your `.ies` files with Import custom IES…, or use a built-in pattern.
Projector	No direct counterpart. Use a Spotlight, or an Area Light for soft, even light.
Sun	The sun of the sky, and optionally a Directional Light that follows SketchUp’s sun too.
Light Emitter material	A material with Emission.

How the settings translate:

Power and Efficiency are one setting in Rayscaper, Intensity, in Watts. Twilight’s power values don’t carry over one to one; set the brightness by eye in the live render.
Color can be a color or a Temperature in Kelvin, like real bulbs are rated. 2700-3000 K is the warm white of most interior lights.
Size is Radius: a larger light gives softer shadows, just like in Twilight. A few centimeters is realistic for a bulb.
Hot Spot and Fall Off become Cone Angle (half the beam width) and Falloff (how soft the edge is, 0 to 1).
Shadow and Soft Shadow have no counterpart: every Rayscaper light casts physically correct shadows, and their softness follows from the radius.
There is no limit on the number of lights and no difference between lights and light-emitting materials, so you don’t have to pick a preset that can handle them.

Environment

Twilight’s Environment Editor is the Environment section of Rayscaper’s Scene Editor. See Environments.

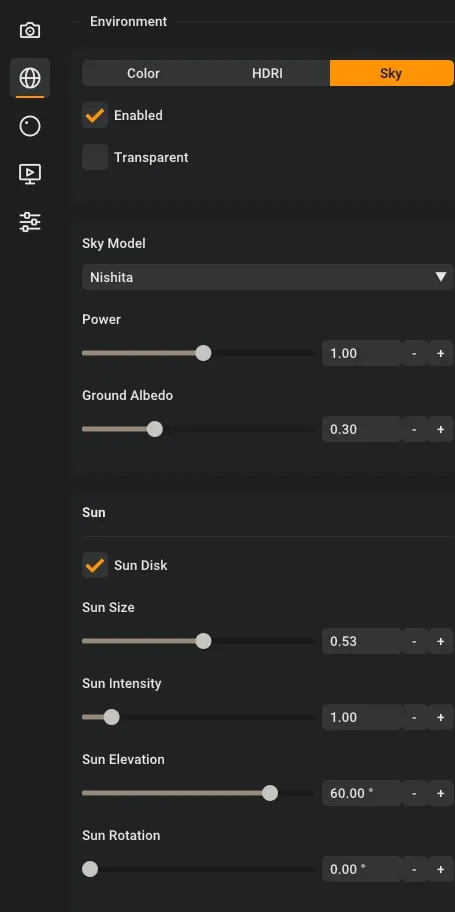

Rayscaper's Environment section with the sky — Rayscaper

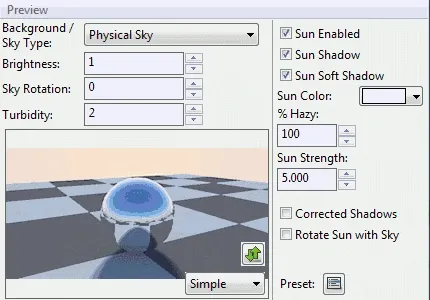

Twilight’s Physical Sky, and Rayscaper’s sky with its sun.

Twilight environment	Rayscaper
Physical Sky	Sky, with a sun that can follow SketchUp’s Shadows panel. Instead of a turbidity, it has a Haze slider.
Spherical Sky	HDRI, from an `.hdr` or `.exr` file. The Asset Manager has the whole Poly Haven HDRI library.
Sky Rotation	Rotation of the HDRI.
Sky Color	Color.
Background Color or Image	Turn on Transparent, which keeps the light of the environment but leaves the background transparent in the saved PNG, and put your color or image behind it in an image editor.
Hemispherical Sky, Sky Probe	Not supported. Use an equirectangular (spherical) HDRI instead.

Rendering

Twilight asked you to choose a render preset first: a biased preset for quick results with few lights, Interior or Exterior for unbiased renders that you stopped when they looked good enough. Rayscaper has one way of rendering, and it handles interiors, exteriors, sunlight, IES lights and emitting materials alike.

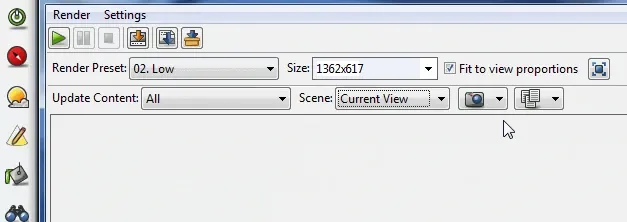

Twilight's Render Editor with the render preset and size — Twilight Render

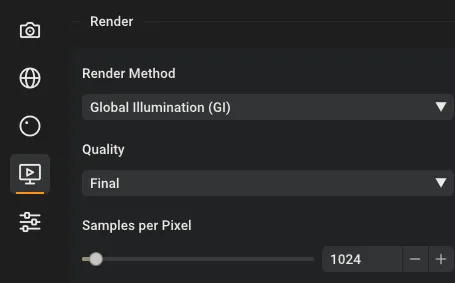

Rayscaper's Render section with the samples per pixel — Rayscaper

Twilight’s render presets, and Rayscaper’s Render section: one method, rendering until it reaches the samples per pixel.

Render presets are not needed. Rayscaper renders until it reaches the Samples per Pixel you set (1024 by default), and you can save it at any moment before that. With Denoise on, a render is often clean after a few hundred samples. See Samples per Pixel.
The exploration renderer is the Rayscaper window itself: it follows the SketchUp camera, so you frame the shot in SketchUp. Click Lock Camera on the Rayscaper toolbar to keep the shot while you look around. See Cameras.
Render size is the Resolution in the camera settings, see Resolution.
Depth of field, parallel and spherical projections are in the camera settings too: see Depth of Field, Orthographic and Panoramic.
Layers to render are SketchUp tags: Rayscaper renders the tags that are visible in SketchUp. Use SketchUp scenes to keep different sets of visible tags.
Saving is File > Save… (Ctrl+S), to a PNG or an HDR EXR. See Saving a render.

Post processing

Twilight’s post-processing tools are in the Post Processing section, and like in Twilight they work on the high-dynamic-range render, so you can change them after the render is done. See Post Processing.

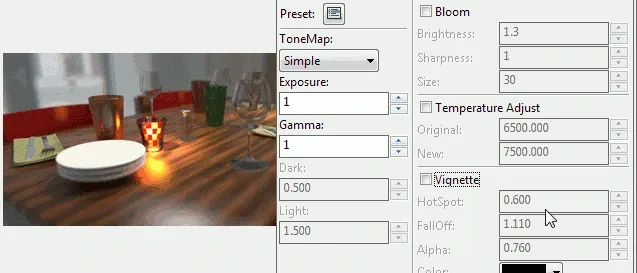

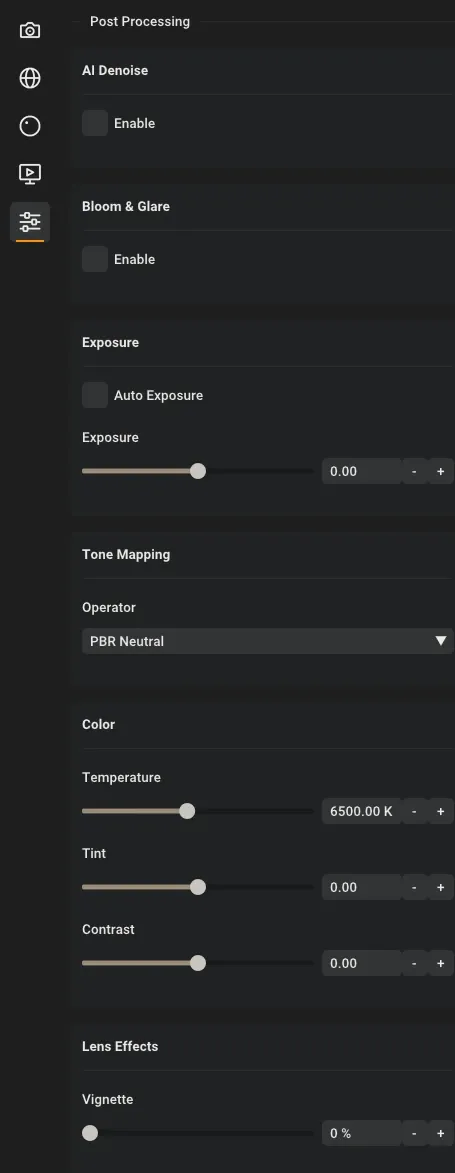

Twilight’s post-processing tools, and Rayscaper’s Post Processing section.

Twilight	Rayscaper
Tone mapping: Exposure, Gamma, Light/Dark	Exposure, Tone Mapping and Contrast under Color
Bloom	Bloom & Glare
Temperature Adjust	Temperature and Tint under Color
Vignette	Vignette under Lens Effects
Denoising	AI Denoise

Animation and other tools

Animation: Rayscaper renders animations from your SketchUp scenes, including the sun moving between scenes. See the Animation Guide.
Section planes: Rayscaper doesn’t render section cuts yet. They’re planned.
Batch rendering of several scenes in one go isn’t available yet. Switch scenes in SketchUp and save a render of each.
Proxies and scattering: Rayscaper’s Scatter covers terrain with grass, plants and trees, and it renders Skatter compositions.
Twilight Pro’s modeling tools (bevel, subdivide, texture projection) have no counterpart in Rayscaper. Rayscaper does have tri-planar mapping, which puts textures on curved and irregular objects without UV mapping.

Licensing

You can try scene editing and animation with the free version. Renders inside SketchUp are limited to 1280 pixels on the longest edge, carry a watermark, and can’t be used commercially. A license is a one-time payment for a perpetual license, like Twilight Pro was. See the Licensing FAQ.

Missing something you relied on in Twilight? Let us know, it helps us decide what to build next.
